BX Motion Pro

Multi-talent for the packaging industry

For customised short-run corrugated box production. Simply select the tool configuration to meet your unique production requirements.

  • Application
  • Technical Data
  • Benefits
  • Experience
  • Downloads
  • Media
  • Short-run corrugated packaging - Box on Demand
  • Production of a wide range of folded packaging (FEFCO types) with inline digital printing & inline gluing
  • Creasing and counter-creasing, cutting lengthwise and crosswise, slitting, die-cutting and printing in one pass
  • Multi-Out function for multiple corrugated board blanks arranged next to each other
BX 2600 Min. Max.
Sheet (width x length) 100 x 330 mm 2600 x 6000 mm
Blank material single, double, and triple flutes 1800 g/m2
Material thickness 1.3 mm 16 mm
Print sheet width 200 mm 2600 mm
Print image width   Up to 1120 mm (with a total of 8 print units)
Machine speed   Up to 100 m/min

Net performance depends on material and format



  • Customised boxes made from single, double, and triple flute
  • Set-up time < 60 seconds
  • Each module can be individually adapted to specific requirements, including the sequence of individual processes

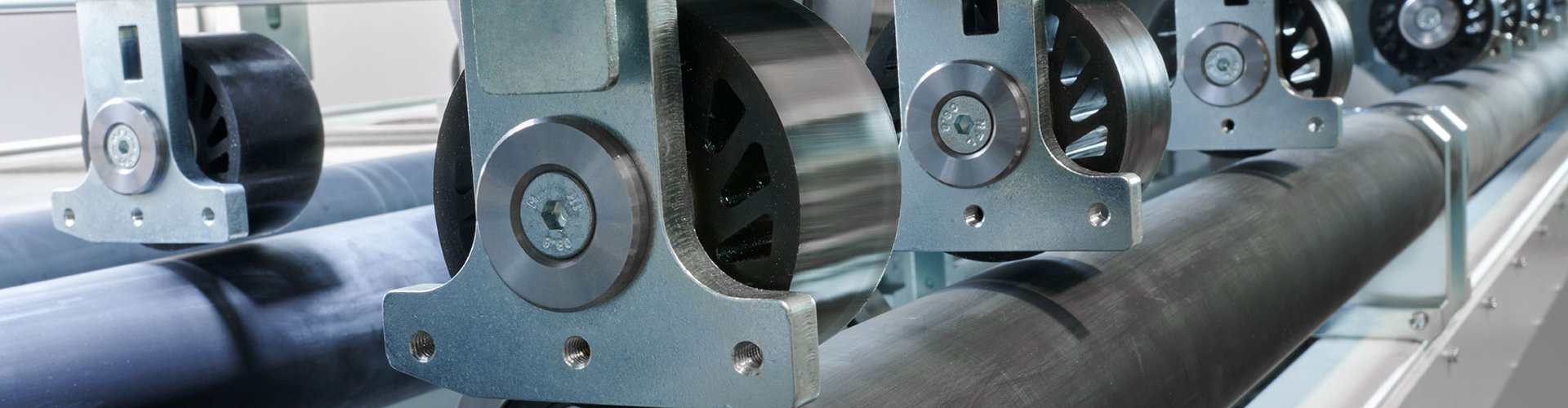

  • Transport rollers and tools are positioned automatically according to FEFCO code and format

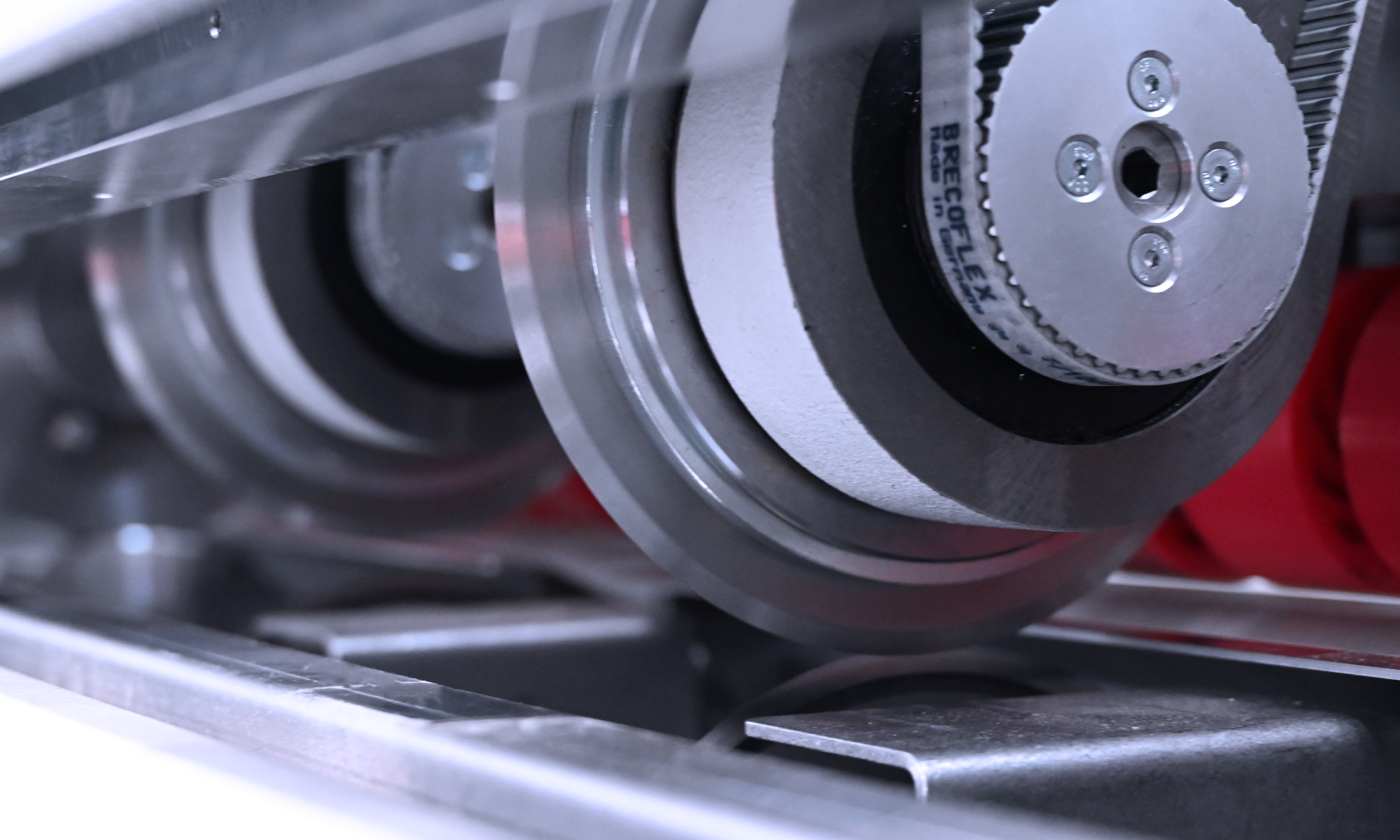

  • Automated adjustment of all creasing/cutting tools for precise positioning

In the newly developed BX Motion, engineers focussed on a robust frame construction and solid, servo-driven tools in proven KOLBUS quality. The machines are assembled by the mechanical engineering specialists in Rahden.

  • The ground-up redesign at the heart of this new-generation modular box maker allows custom specifications for each module to meet your exact requirements
  • This powerful and truly bespoke boxmaking solution puts you in control of your production like never before.
  • Sturdy construction for performance and precision in continuous operation  with thick corrugated boards up to 16 mm
  • Ergonomic one-person machine operation: practical and easy to understand
