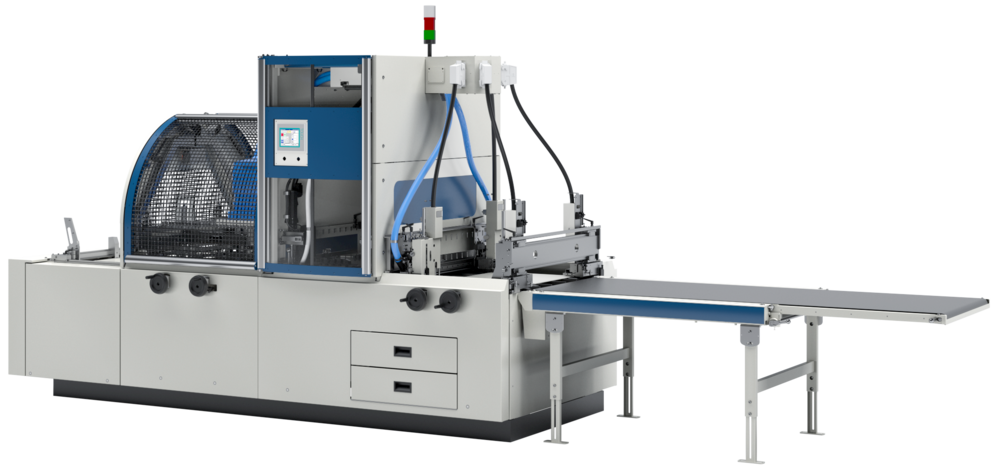

Boxline Magnet inserter BLM 500

High-quality, long-lasting packaging solutions with magnetic closure

For automatically drilling of blind holes as wall as separating and inserting magnets or steel discs

  • Application
  • Technical Data
  • Benefits
  • Downloads
  • Media
  • Milling station incl. nozzle system incl. waste exhaust system
  • Gluing station incl. premelter
  • Separation of magnets from the magazine
  • Optional: tools for steel disc separation
  • Up to four magnets or steel discs with separate optimized feeding units
  • Format change-over – easy setting without tools

Recommended combination with machine SA 260 for lining

BLM 500 Min. Max.
Cardboard size range (width x heigth x thickness) 140 x 140 x 1.5 mm 735 x 525 x 4 mm
Magnet- steel disc thickness 1 mm / 1.5 mm 2 mm
Magnet diameter 10 mm / 12 mm 15 mm
Steel disc diameter 12 mm 15 mm
Mechanical speed   Up to 40 cycles/min

Net performance depends on material and format

Easy for the manufacturer. High value for the customer.

  • Elimination of processes: no labeling & no punching
  • Less material costs
  • Perfectly concealed magnets/steel discs
