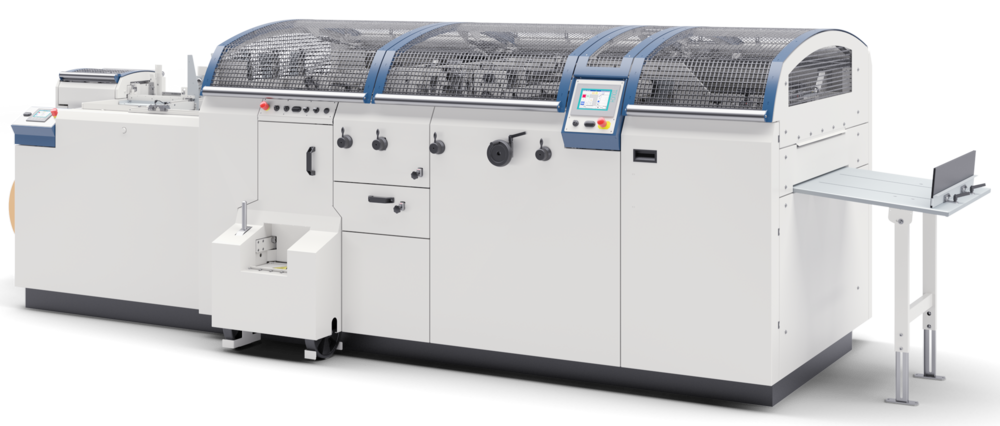

Casemaker DA 160

Casemaker for small print runs

No more die changes when changing formats!

With the new DA 160 casemaker machine, KOLBUS is launching a pioneering solution for bookbinding production. The machine type was specially developed to meet the growing demands for short set-up times, high flexibility and the economical production of very small runs. The DA 160 combines state-of-the-art drive technology, intuitive operation and intelligent material processing with proven KOLBUS quality.
  • Application
  • Technical Data
  • Benefits
  • Media

The KOLBUS Copilot® system guarantees easy operation and fast make-ready via the multi-touchscreen.

  • Processing of cardboard and cases in small to medium runs
  • Fully automated manufacture: Fully automatic adjustment ensures one-person operation
DA 160 Min. Max.
Case – size range opened case (width  x height) 205 x 140 mm 735 x 420 mm
Cloth (width  x height) 205 x 140 mm 773 x 458 mm
Boards Thickness 1 mm 4 mm
Mechanical speed   Up to 20 cycles/min

Net production is subject to sizes, materials etc.

  • Changeover without time-consuming matrix changes at the gluing station: This significantly reduces set-up times when changing formats. Large and small formats can be produced directly with the same matrix.
  • Motorised adjustment of the axes: This automation not only increases machine availability and ensures short set-up processes, but also guarantees consistently high repeat accuracy.
  • New roll creasing concept: The cutting processes of the centre strip unit are optimised to significantly reduce waste when changing formats. This leads to less waste and more efficient use of materials – a clear advantage in terms of sustainability and cost-effectiveness.
